This is the third volume of The Zcash Arboretum, and it develops the cryptography behind Zcash’s Orchard protocol: the proof system Halo 2, with which every Orchard Action carries a zero-knowledge proof of its own well-formedness. The protocol specification fixes that use: Halo 2 is used with the Vesta curve (the Math Guide, §“Pallas and Vesta assembled”) to prove and verify the Orchard Action statement (protocol specification § 4.1.13, “Zero-Knowledge Proving System”), and the proving system is defined by reference to the halo2 book (§ 5.4.10.3, “Halo 2”). The statement itself (§ 4.18.4, “Action Statement (Orchard)”) is read in §1.2. Actions of the Orchard pool and of the Ironwood pool, the second shielded pool of Orchard-protocol notes, prove this statement, extended at NU6.3 by one public bit, disableCrossAddress , that when set forces the new note’s address to equal the spent note’s, with one circuit and one verifying key (protocol specification, NU6.3 edition, § 4.6, “Action Descriptions”; ZIP 229; ZIP 258), so the proof system and proof format described here serve both pools.
The two volumes below this one built its material from the ground up. The Math Guide constructed the mathematics: finite fields, elliptic curves, polynomials and evaluation domains, probability. The Crypto Guide constructed the cryptographic primitives: hash functions, commitments, Σ -protocols and the Fiat–Shamir transform, zero knowledge, polynomial commitment schemes. This volume assumes all of these and defines none of them afresh; it assembles them into a proof system. In particular the Crypto Guide owns every definition this volume instantiates: the non-interactive argument and the SNARK, together with the polynomial interactive oracle proof and the compilation recipe that turns one into the other (§“SNARKs: succinct non-interactive arguments of knowledge”); the Fiat–Shamir transform (§“The Fiat–Shamir transform: from interactive to non-interactive”); the Pedersen vector commitment (§“Pedersen vector commitments”); and the polynomial-commitment interface, with its sketch of an inner-product opening (§“Polynomial commitment schemes”). Where a lower volume’s result is needed it is cited at the point of use, by italic volume name and section title: the volumes are separate documents, so there is no cross-document reference, and this volume forward-references only its own later sections.
The running example is the statement
| knowledge of x ∈ F 97 with x 3 + x + 5 = 35, |
one of whose witnesses (the Crypto Guide, §“Languages,
relations, and witnesses”) is
A proof system for such a statement is required to have three properties, each a definition of the Crypto Guide (§“Interactive proofs, zero knowledge, and SNARKs”) used here without restatement. Overwhelming completeness: an honest prover holding a witness is accepted with overwhelming probability, in the sense of the Math Guide (§“Polynomial, exponential, and negligible functions”). Knowledge soundness (the Crypto Guide, §“Knowledge soundness and extractors”): an efficient extractor, given rewindable access to any prover the verifier accepts with non-negligible probability, outputs a valid witness. Zero knowledge (the Crypto Guide, §“The simulation paradigm and zero knowledge”): a simulator given only the public input produces transcripts indistinguishable from those of real executions.
The volume establishes these properties to different extents. Design-stage claims are classified in three grades: specified, when the protocol specification or a ZIP states the property; designed-but-unspecified, when the design intends it but no specification, ZIP or theorem of this volume states it for the deployed system; and open problem, when no design is known to achieve it. The Halo 2 protocol is complete except with negligible probability: for each random challenge, a number of values at most proportional to the size of the circuit, out of the | F | possible, makes undefined a division that the verifier or the honest prover performs; §4.6 lists these degenerate challenges once the protocol is defined. The inner-product opening argument is knowledge sound under the discrete-logarithm assumption on Vesta, with the hash that derives its generators modelled as a random oracle (Theorem 3.5 and, for the deployed opening, Corollary 3.13). Knowledge soundness of the deployed non-interactive argument rests on an analysis in the algebraic group model and the random-oracle model whose instantiation to the deployed transcript is designed-but-unspecified (§5). Zero knowledge is recorded in §4.6 from the halo2 book’s claim for the interactive protocol, under the composition and Fiat–Shamir hypotheses stated there.
The running example has the form of the Orchard Action statement. The
prover of an Action shows knowledge of a note, the keys that control
it, and a Merkle path such that the note’s commitment is well formed,
the path, unless the spent value is zero, leads from that commitment to
the published tree root (the
Crypto Guide, §“Merkle trees and commitments to sets”), the
net value commitment is a Pedersen commitment to the old value minus
the new value (the Crypto Guide, §“The Pedersen
commitment”), the nullifier, the unique tag whose publication marks
the note spent, is computed correctly, and the key that authorises the
spend is a re-randomisation of the owner’s key (the Crypto
Guide, §“Key re-randomisation and unlinkability”). The protocol
specification states this as nine conditions on a public input and a private
witness
(§ 4.18.4,
“Action Statement (Orchard)”), the five just paraphrased and four further:
that the spent note’s address is derived from the same keys, that the new note’s
commitment is well formed, and that two public bits, when zero, force the spent
value and the created value, respectively, to zero. From NU6.3 the circuit
checks a tenth condition, not yet listed in § 4.18.4, on a further public
bit that restricts cross-address transfers and is set for every Orchard-pool
Action
(§ 4.6;
ZIP 258).
Each condition unfolds into small arithmetic facts over the field
F p Pallas (the Math Guide, §“Base fields, scalar
fields, and the Pasta cycle”): the note commitment alone is a
Sinsemilla commitment, a Sinsemilla hash to a point plus a blinding
multiple of a fixed generator (the Crypto Guide,
§“Sinsemilla: an algebraic hash-based commitment”), whose hash is
evaluated in the circuit with the help of a lookup table. Together the
conditions are laid out on the
Five reductions connect the claim to the checks the verifier performs.
Computation → grid (§2, “From computation to a grid of constraints”). The claim is rewritten as a table of rows, each row one elementary gate ( × or + ), with copy constraints between rows forcing shared values.
Grid → polynomials (§2, “From the grid to polynomials”). Each column of the table is interpolated into a polynomial (the Math Guide, §“Lagrange interpolation”). The condition that every row obeys its gate becomes the condition that one polynomial G (X) is zero at every row.
Vanishing → identity (§2, “From
vanishing to a single identity”). The statement that G is zero at
every row becomes the algebraic identity
Identity → one random check (§2, “Why checking one random point is a proof”). The verifier tests the identity at a single random point z . A false identity holds at a uniformly random point with probability at most its degree divided by the field size (the Math Guide, §“The Schwartz–Zippel lemma”).
Random check → committed openings. A binding commitment (the Crypto Guide, §“Hiding and binding”) prevents the prover from changing her polynomials after z is drawn (§2, “Why the prover cannot wriggle: binding commitments”), and the inner-product argument (IPA) of §3 opens a commitment at z without sending the polynomial; the permutation argument enforces the copy constraints (§2, “Enforcing the wiring: the permutation argument”); a dedicated public column, the instance column, fixes the public input 35 (§4, “Instance columns and binding the public statement”); and blinding hides the witness (§4, “Zero knowledge: hiding the witness in Halo 2”).
Section 6 composes the five reductions into one chain of implications, from the verifier’s accepted checks back to the claim.
The field F 97 is a
toy. Over Orchard’s field F p Pallas , whose prime has 255
bits, a fixed false identity of degree around 2 14 (the
degree of the deployed constraint polynomial, bounded in
§4, “The complete Halo 2 protocol”) survives one fresh
uniform evaluation challenge with probability around

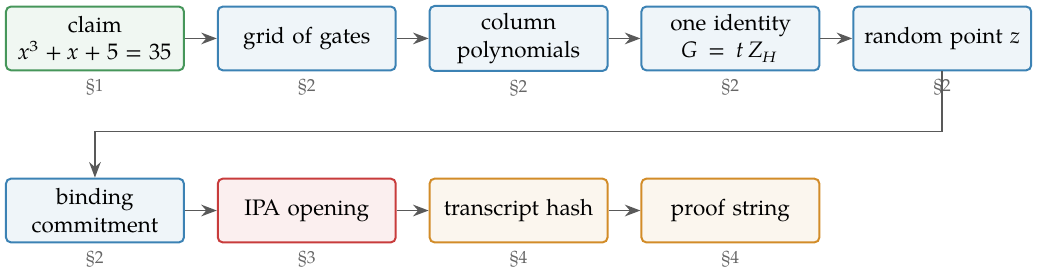

The sections follow the running example; Figure 1 shows the section in which each stage is built.
Section 2 takes the example from the computation to committed polynomials: the grid, the column polynomials, the single identity, the random point, and then the general form of the constraint system, PLONKish arithmetisation, of which the toy is an instance, followed by the permutation argument for the copy constraints and the lookup argument for facts that no low-degree gate states economically. It ends with the problem a vector commitment alone does not solve: proving the value of a committed polynomial at z without sending the polynomial, in fewer group elements than the polynomial has coefficients.
Section 3 solves that problem with the inner-product argument. It states the inner-product problem without machinery, works one fold with every algebra step written out, gives the recursion with both parties’ computations side by side, makes the verifier’s work explicit, proves the argument knowledge sound by extraction from three transcripts under the discrete-logarithm assumption with uniform generators, separates what the blinders hide from what they do not, and opens the example’s own polynomial through every round on a curve of prime order 97 , by script. Its last subsection gives Halo 2’s parameters, the deployed form of the argument as a change of variables, the bytes of a proof, the deferred multi-scalar multiplication and the batching that amortises it, and accumulation, which Orchard does not deploy.
Section 4 gives the deployed proof system: the Action circuit’s arithmetisation, the instance column that binds the public statement, the Fiat–Shamir transform that replaces the verifier’s challenges by hash outputs, the reduction of many openings to one, the complete protocol in seven phases, its zero knowledge, and the compiled-polynomial-IOP pattern the protocol instantiates.
Section 5 treats knowledge soundness of the non-interactive argument: the extractor of §3 when the challenges are hash outputs, the algebraic group model in which the halo2 book proves its tight bound for the analysed protocol, and the gap between concrete and asymptotic security.
Section 6 lists the verifier’s checks on the running example in the order he performs them, the chain of implications back to the prover’s knowledge of advice satisfying every gate and every copy constraint, and the same chain at Orchard scale.
Section 7 treats recursive proof composition, accumulation schemes, the Halo trick, and the cycle of curves that makes native recursion efficient. Orchard proves with Halo 2 on the Pasta curves but does not recurse, and the section states at the outset that Orchard does not deploy its material.
